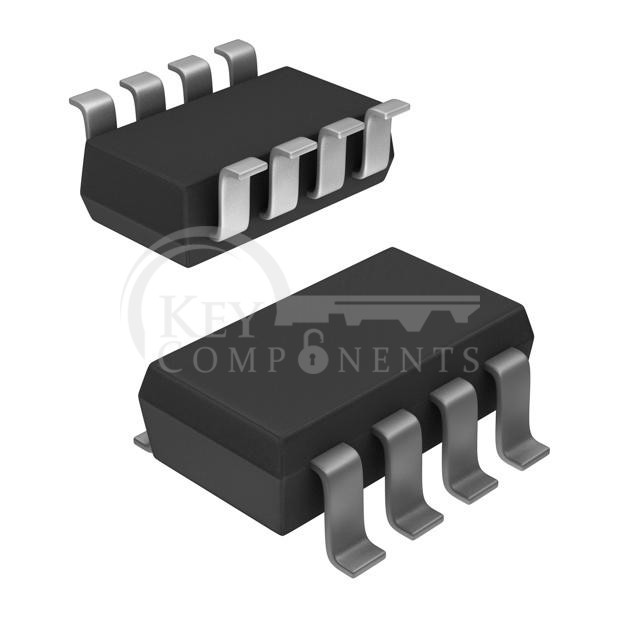

ZDT6790TA

ZDT6790TA

Manufacturer Part ZDT6790TA
Manufacturer Diodes Incorporated
Description TRANS NPN/PNP 45V/40V 2A SM8
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Transistor Type:NPN, PNP
Current - Collector (Ic) (Max):2A
Voltage - Collector Emitter Breakdown (Max):45V, 40V
Vce Saturation (Max) @ Ib, Ic:500mV @ 5mA, 1A, 750mV @ 50mA, 2A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:400 @ 1A, 2V / 300 @ 10mA, 2V
Power - Max:2.75W
Frequency - Transition:150MHz, 100MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-223-8
Supplier Device Package:SM8
