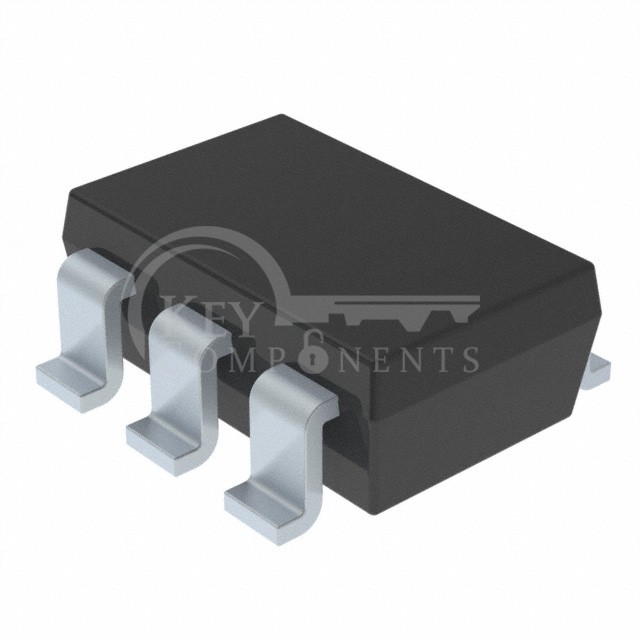

ZXTC2061E6TA

ZXTC2061E6TA

Manufacturer Part ZXTC2061E6TA
Manufacturer Diodes Incorporated
Description TRANS NPN/PNP 12V 5A/3.5A SOT23
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Transistor Type:NPN, PNP
Current - Collector (Ic) (Max):5A, 3.5A
Voltage - Collector Emitter Breakdown (Max):12V
Vce Saturation (Max) @ Ib, Ic:180mV @ 100mA, 5A, 200mV @ 350mA, 3.5A
Current - Collector Cutoff (Max):50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:480 @ 1A, 2V / 290 @ 1A, 2V
Power - Max:1.1W
Frequency - Transition:260MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOT-23-6
Supplier Device Package:SOT-26
