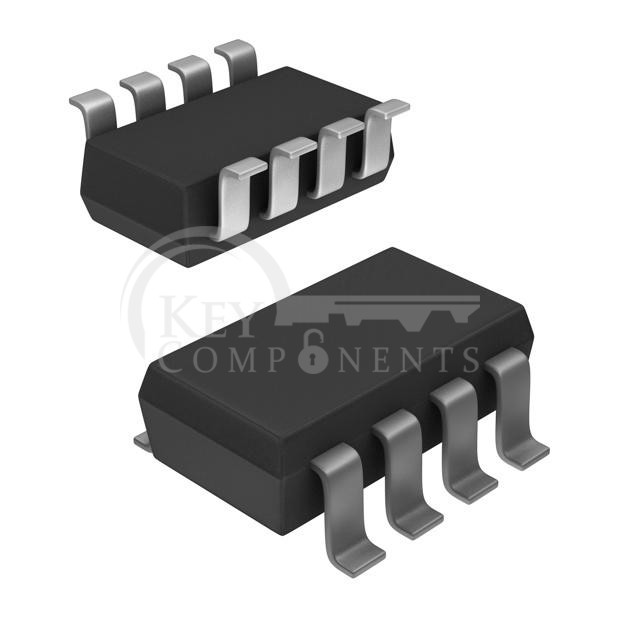

ZDT1053TA

Manufacturer Part	ZDT1053TA
Manufacturer	Diodes Incorporated
Description	TRANS 2NPN 75V 5A SM8
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Transistor Type:	2 NPN (Dual)
Current - Collector (Ic) (Max):	5A
Voltage - Collector Emitter Breakdown (Max):	75V
Vce Saturation (Max) @ Ib, Ic:	440mV @ 250mA, 5A
Current - Collector Cutoff (Max):	10nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	300 @ 1A, 2V
Power - Max:	2.75W
Frequency - Transition:	140MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-223-8
Supplier Device Package:	SM8
