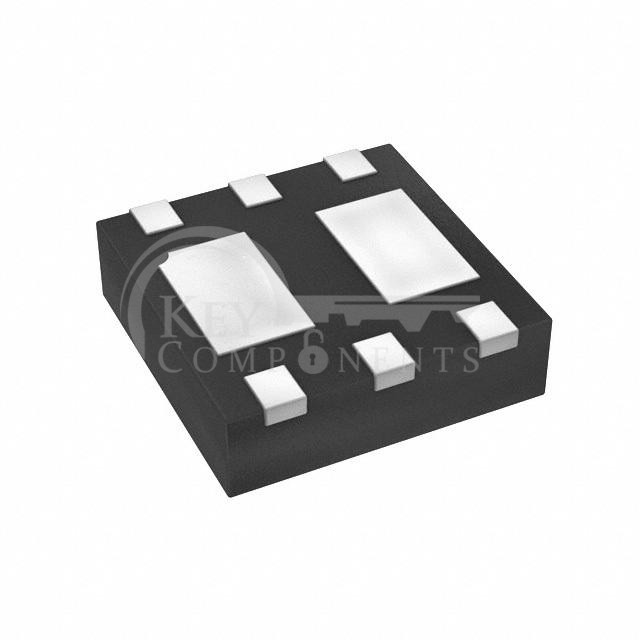

ZXTP56020FDBQ-7

ZXTP56020FDBQ-7

Manufacturer Part ZXTP56020FDBQ-7
Manufacturer Diodes Incorporated
Description TRANS 2PNP 20V 2A U-DFN2020-6
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Transistor Type:2 PNP (Dual)
Current - Collector (Ic) (Max):2A
Voltage - Collector Emitter Breakdown (Max):20V
Vce Saturation (Max) @ Ib, Ic:390mV @ 200mA, 2A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:250 @ 100mA, 2V
Power - Max:405mW
Frequency - Transition:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-UDFN Exposed Pad
Supplier Device Package:U-DFN2020-6
