Manufacturer Part | 368312-1 |
---|---|
Manufacturer | TE Connectivity AMP Connectors |

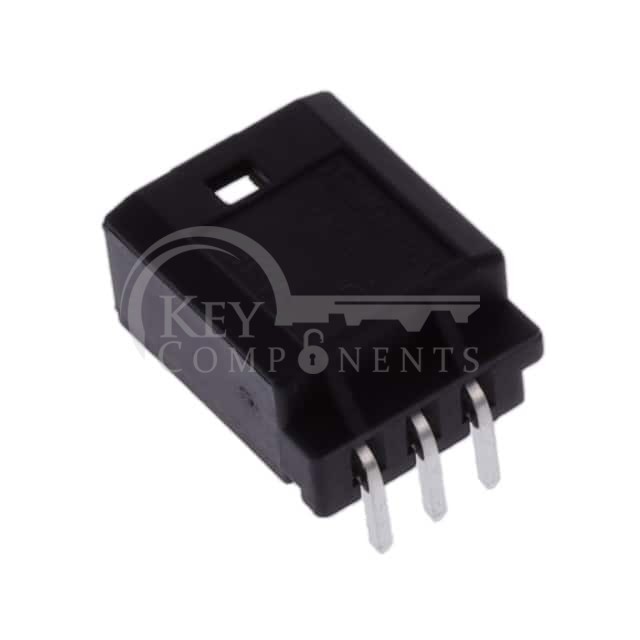

Description | CONN HEADER R/A 3POS 2.54MM |
Category | Connectors, Interconnects |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Positions: | 3 |
Number of Rows: | 1 |
Row Spacing - Mating: | - |
Number of Positions Loaded: | All |
Style: | Board to Cable/Wire |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole, Right Angle |
Termination: | Solder |
Fastening Type: | Latch Holder |
Contact Length - Mating: | 0.264" (6.70mm) |
Contact Length - Post: | 0.122" (3.10mm) |
Overall Contact Length: | - |
Insulation Height: | 0.244" (6.20mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | - |
Contact Finish - Post: | Tin |
Contact Material: | Bronze |
Insulation Material: | Polybutylene Terephthalate (PBT), Glass Filled |
Features: | Board Guide |
Operating Temperature: | -40°C ~ 120°C |
Ingress Protection: | - |
Material Flammability Rating: | - |
Insulation Color: | Black |
Current Rating (Amps): | - |
Voltage Rating: | - |
