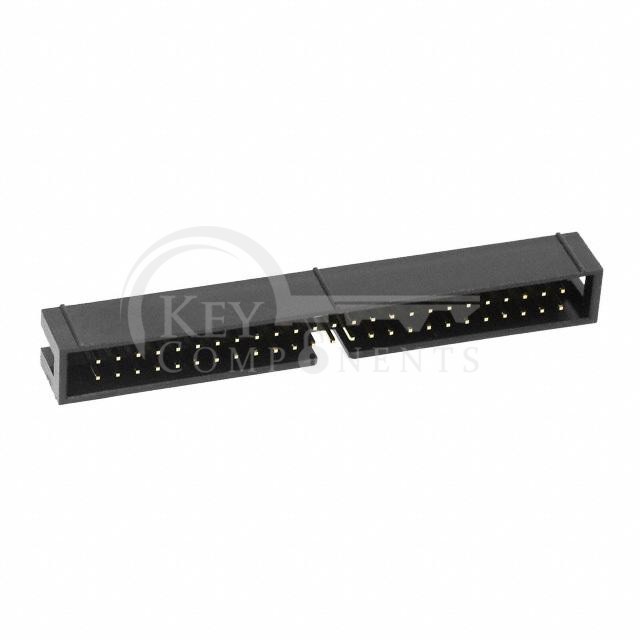

Manufacturer Part | 30350-6002HB |
---|---|
Manufacturer | 3M |
Description | CONN HEADER VERT 50POS 2.54MM |
Category | Connectors, Interconnects |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Positions: | 50 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.100" (2.54mm) |
Number of Positions Loaded: | All |
Style: | Board to Board or Cable |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.236" (6.00mm) |
Contact Length - Post: | 0.110" (2.79mm) |
Overall Contact Length: | - |
Insulation Height: | 0.366" (9.30mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | Flash |
Contact Finish - Post: | Gold |
Contact Material: | Brass |
Insulation Material: | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
Features: | Keying Slot |
Operating Temperature: | -55°C ~ 105°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | 1A |
Voltage Rating: | - |
