Manufacturer Part | 350432-4 |
---|---|
Manufacturer | TE Connectivity AMP Connectors |

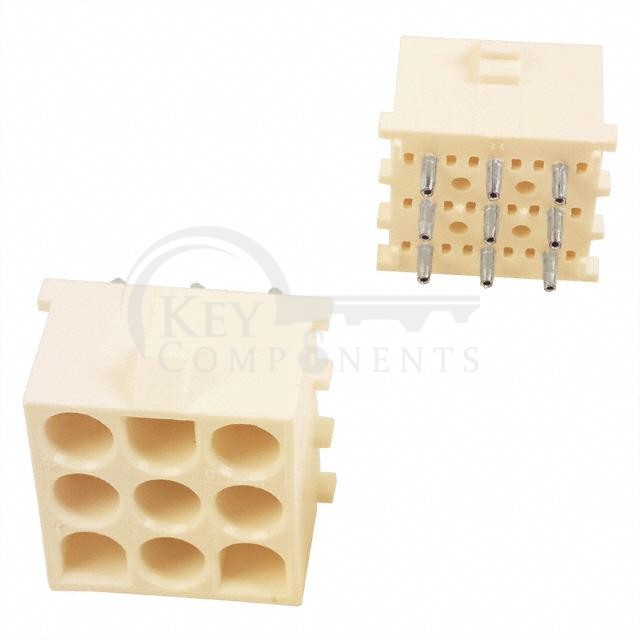

Description | CONN HEADER VERT 9POS 6.35MM |
Category | Connectors, Interconnects |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.250" (6.35mm) |
Number of Positions: | 9 |
Number of Rows: | 3 |
Row Spacing - Mating: | 0.250" (6.35mm) |
Number of Positions Loaded: | All |
Style: | Board to Cable/Wire |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Locking Ramp |
Contact Length - Mating: | - |
Contact Length - Post: | 0.155" (3.94mm) |
Overall Contact Length: | - |
Insulation Height: | 0.550" (13.97mm) |
Contact Shape: | Circular |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
Contact Finish - Post: | Tin |
Contact Material: | Phosphor Bronze |
Insulation Material: | Polyamide (PA), Nylon |
Features: | - |
Operating Temperature: | - |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-2 |
Insulation Color: | Natural |
Current Rating (Amps): | - |
Voltage Rating: | - |
