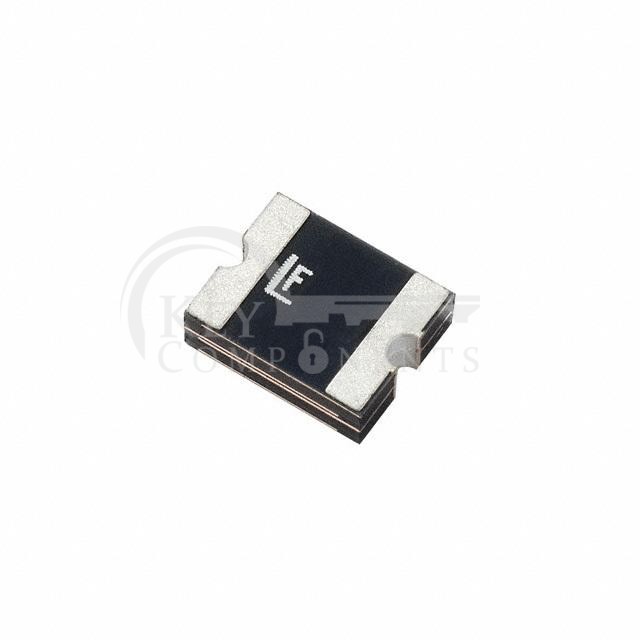

2016L100/33DR
| Manufacturer Part | 2016L100/33DR |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | PTC RESET FUSE 33V 1.1A 2016 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Polymeric |
| Voltage - Max: | 33V |
| Current - Max: | 40 A |
| Current - Hold (Ih) (Max): | 1.1 A |
| Current - Trip (It): | 2.2 A |
| Time to Trip: | 500 ms |
| Resistance - Initial (Ri) (Min): | 100 mOhms |
| Resistance - Post Trip (R1) (Max): | 400 mOhms |
| Resistance - 25°C (Typ): | - |
| Operating Temperature: | -40°C ~ 85°C |
| Ratings: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 2016 (5041 Metric), Concave |
| Size / Dimension: | 0.200" L x 0.160" W (5.08mm x 4.07mm) |
| Height - Seated (Max): | - |
| Thickness (Max): | 0.049" (1.25mm) |
| Lead Spacing: | - |
