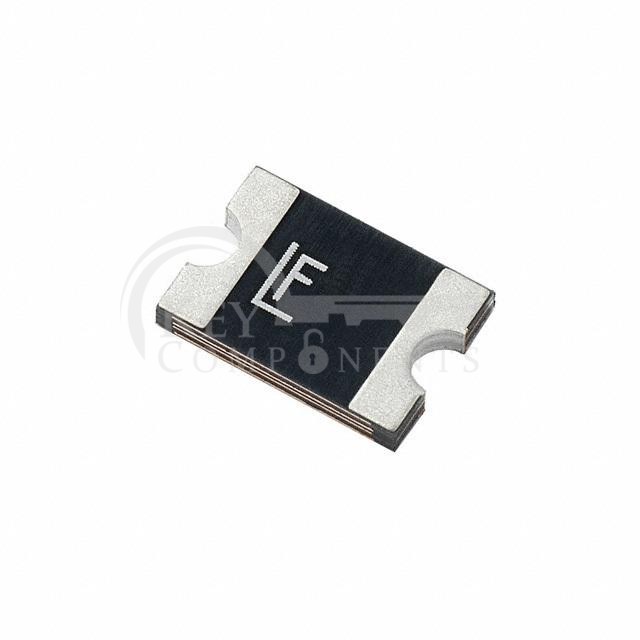

2920L260/24DR

2920L260/24DR

Manufacturer Part 2920L260/24DR
Manufacturer Littelfuse Inc.
Description PTC RESET FUSE 24V 2.6A 2920
Category Circuit Protection
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Polymeric
Voltage - Max:24V
Current - Max:40 A
Current - Hold (Ih) (Max):2.6 A
Current - Trip (It):5 A
Time to Trip:10 s
Resistance - Initial (Ri) (Min):25 mOhms
Resistance - Post Trip (R1) (Max):75 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:2920 (7351 Metric), Concave
Size / Dimension:0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max):-
Thickness (Max):0.049" (1.25mm)
Lead Spacing:-
