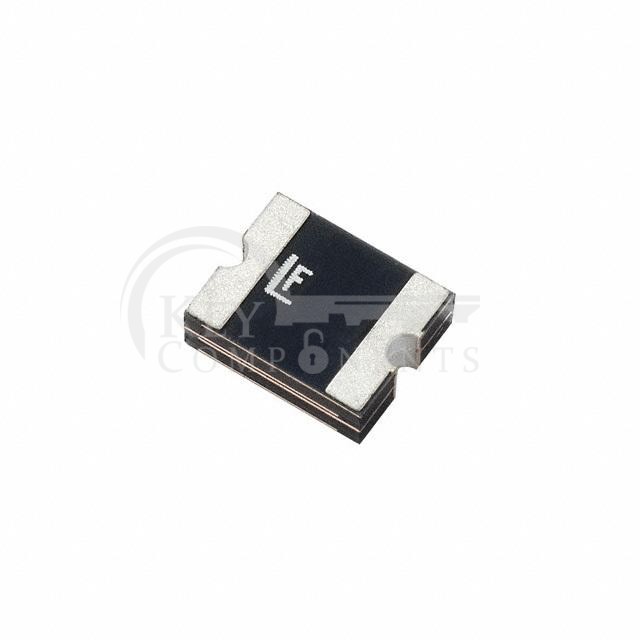

2016L150DR

2016L150DR

Manufacturer Part 2016L150DR
Manufacturer Littelfuse Inc.
Description PTC RESET FUSE 15V 1.5A 2016
Category Circuit Protection
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Polymeric
Voltage - Max:15V
Current - Max:40 A
Current - Hold (Ih) (Max):1.5 A
Current - Trip (It):3 A
Time to Trip:1 s
Resistance - Initial (Ri) (Min):70 mOhms
Resistance - Post Trip (R1) (Max):180 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:2016 (5041 Metric), Concave
Size / Dimension:0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max):-
Thickness (Max):0.061" (1.55mm)
Lead Spacing:-
