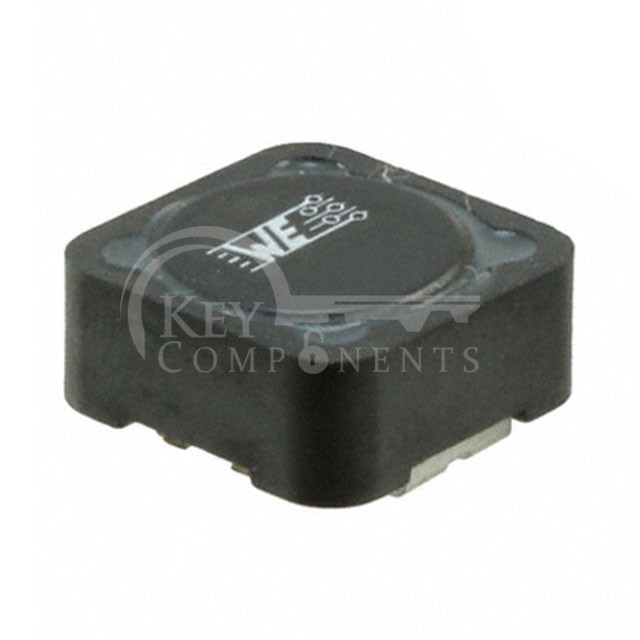

744771233
| Manufacturer Part | 744771233 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 330UH 780MA 510MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 330 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 780 mA |
| Current - Saturation (Isat): | 970mA |
| Shielding: | Shielded |
| DC Resistance (DCR): | 510mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 3MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 1 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max): | 0.236" (6.00mm) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
