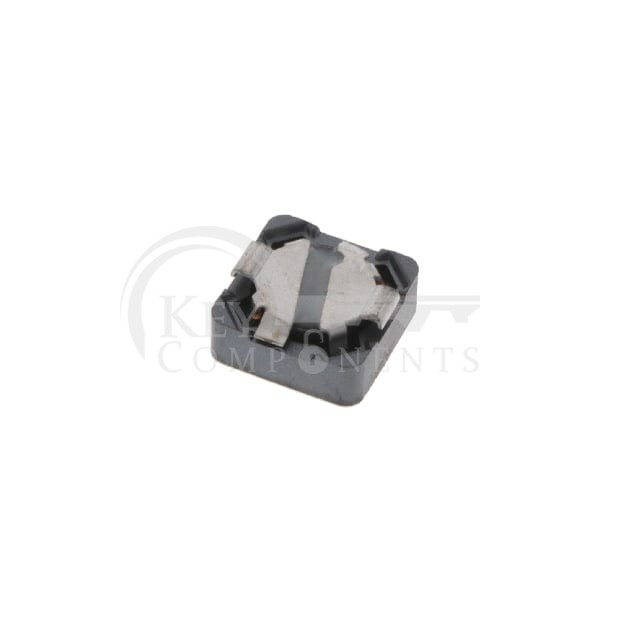

74477820
| Manufacturer Part | 74477820 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 100UH 620MA 790MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 100 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 620 mA |
| Current - Saturation (Isat): | 760mA |
| Shielding: | Shielded |
| DC Resistance (DCR): | 790mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 9MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 1 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max): | 0.134" (3.40mm) |
