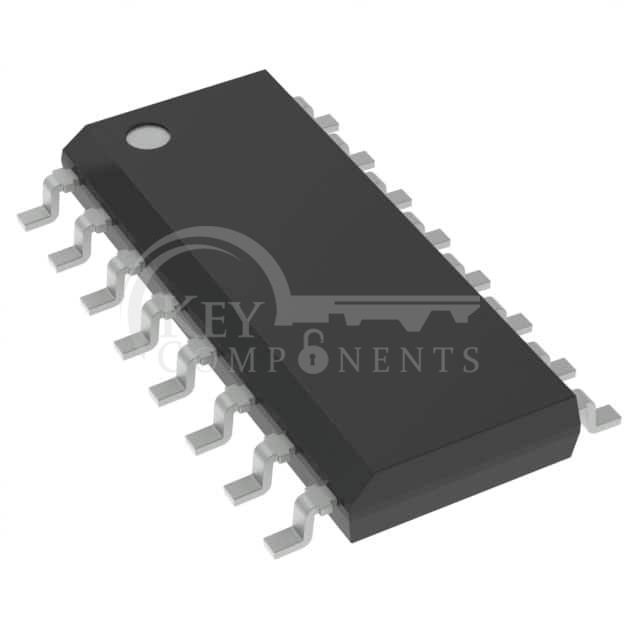

VIPER38LDTR

VIPER38LDTR

Manufacturer Part VIPER38LDTR
Manufacturer STMicroelectronics
Description IC OFFLINE SWITCH FLYBACK 16SO
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:800V
Topology:Flyback
Voltage - Start Up:14 V
Voltage - Supply (Vcc/Vdd):8.5V ~ 23.5V
Duty Cycle:80%
Frequency - Switching:60kHz
Power (Watts):20 W
Fault Protection:Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features:-
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:16-SO
Mounting Type:Surface Mount
