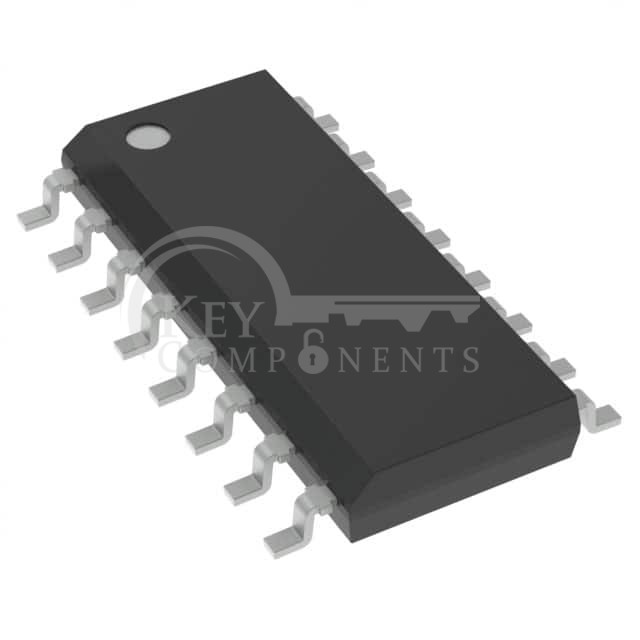

VIPER17HDTR
| Manufacturer Part | VIPER17HDTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC OFFLINE SWITCH FLYBACK 16SO |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Isolation: | Isolated |
| Internal Switch(s): | Yes |
| Voltage - Breakdown: | 800V |
| Topology: | Flyback |
| Voltage - Start Up: | 14 V |
| Voltage - Supply (Vcc/Vdd): | 8.5V ~ 23.5V |
| Duty Cycle: | 70% |
| Frequency - Switching: | 115kHz |
| Power (Watts): | 10 W |
| Fault Protection: | Current Limiting, Over Temperature, Over Voltage |
| Control Features: | - |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Package / Case: | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-SO |
| Mounting Type: | Surface Mount |
