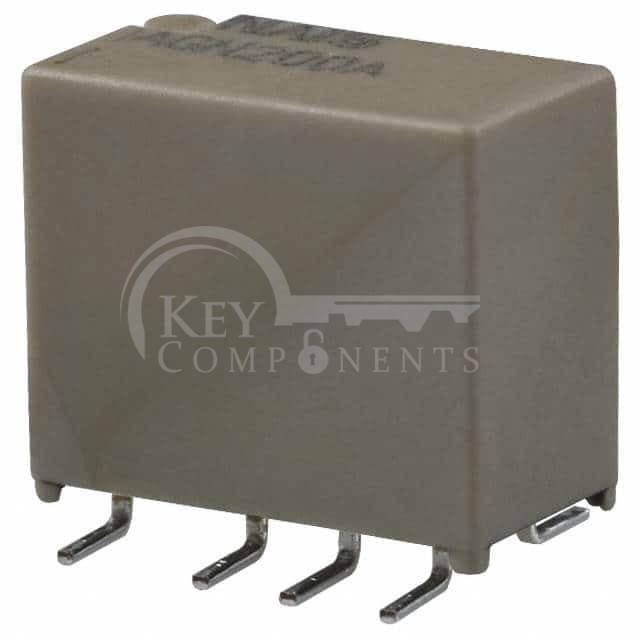

AGN200A24Z
| Manufacturer Part | AGN200A24Z |
|---|---|
| Manufacturer | Panasonic Electric Works |
| Description | RELAY TELECOM DPDT 1A 24VDC |
| Category | Relays |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Mounting Type: | Surface Mount |
| Coil Voltage: | 24VDC |
| Contact Form: | DPDT (2 Form C) |
| Contact Rating (Current): | 1 A |
| Switching Voltage: | 125VAC, 110VDC - Max |
| Coil Current: | 9.6 mA |
| Coil Type: | Non Latching |
| Features: | - |
| Termination Style: | Gull Wing |
| Seal Rating: | - |
| Coil Insulation: | - |
| Must Operate Voltage: | 18 VDC |
| Must Release Voltage: | 2.4 VDC |
| Operate Time: | 4 ms |
| Release Time: | 4 ms |
| Operating Temperature: | -40°C ~ 85°C |
| Contact Material: | Silver Palladium (AgPd), Gold (Au) |
| Relay Type: | Telecom |
