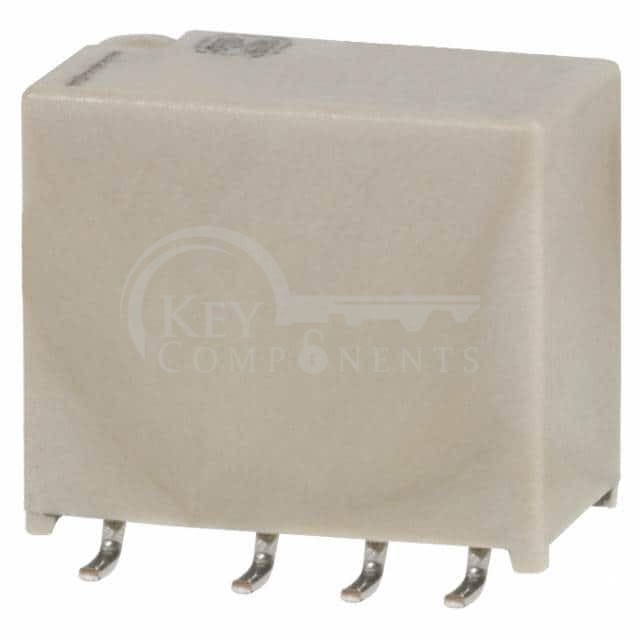

AGN200A12

AGN200A12

Manufacturer Part AGN200A12
Manufacturer Panasonic Electric Works
Description RELAY TELECOM DPDT 1A 12VDC
Category Relays
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Mounting Type:Surface Mount
Coil Voltage:12VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):1 A
Switching Voltage:125VAC, 110VDC - Max
Coil Current:11.7 mA
Coil Type:Non Latching
Features:-
Termination Style:Gull Wing
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:9 VDC
Must Release Voltage:1.2 VDC
Operate Time:4 ms
Release Time:4 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Palladium (AgPd), Gold (Au)
Relay Type:Telecom
