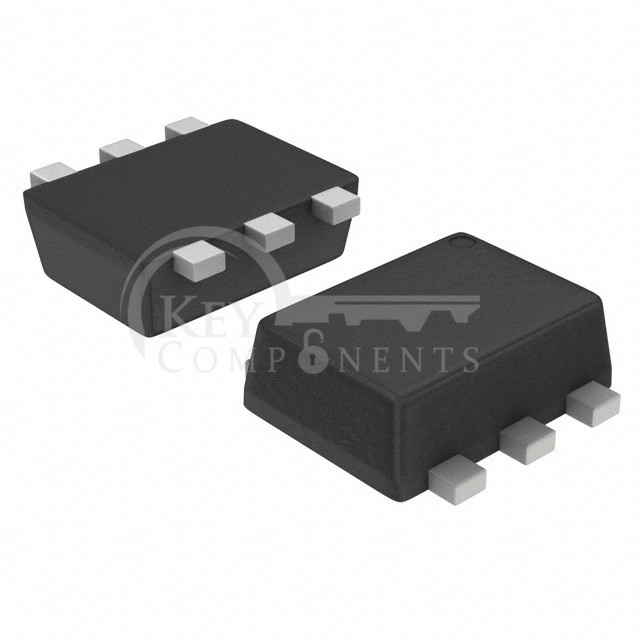

NST3904DXV6T5G
| Manufacturer Part | NST3904DXV6T5G |
|---|---|
| Manufacturer | onsemi |
| Description | TRANS 2NPN 40V 0.2A SOT563 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Last Time Buy |
| Transistor Type: | 2 NPN (Dual) |
| Current - Collector (Ic) (Max): | 200mA |
| Voltage - Collector Emitter Breakdown (Max): | 40V |
| Vce Saturation (Max) @ Ib, Ic: | 300mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max): | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 10mA, 1V |
| Power - Max: | 500mW |
| Frequency - Transition: | 300MHz |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-563, SOT-666 |
| Supplier Device Package: | SOT-563 |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
