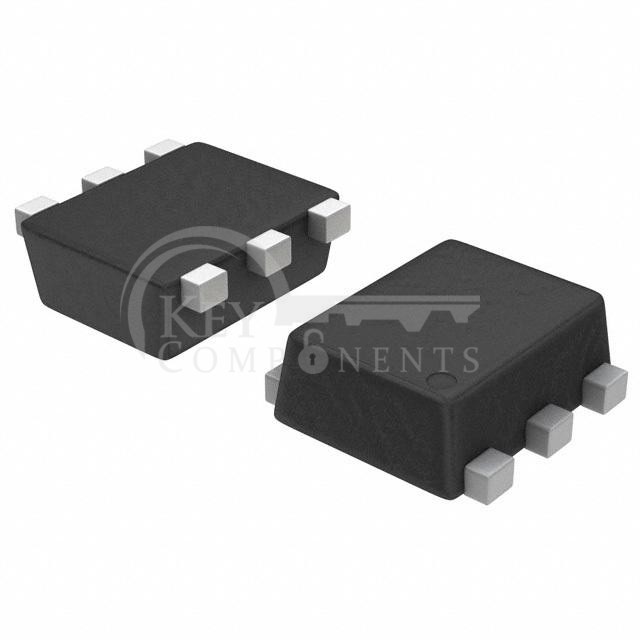

NST3904DP6T5G
| Manufacturer Part | NST3904DP6T5G |
|---|---|
| Manufacturer | onsemi |
| Description | TRANS 2NPN 40V 0.2A SOT963 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Transistor Type: | 2 NPN (Dual) |
| Current - Collector (Ic) (Max): | 200mA |
| Voltage - Collector Emitter Breakdown (Max): | 40V |
| Vce Saturation (Max) @ Ib, Ic: | 300mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max): | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 10mA, 1V |
| Power - Max: | 350mW |
| Frequency - Transition: | 200MHz |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-963 |
| Supplier Device Package: | SOT-963 |
