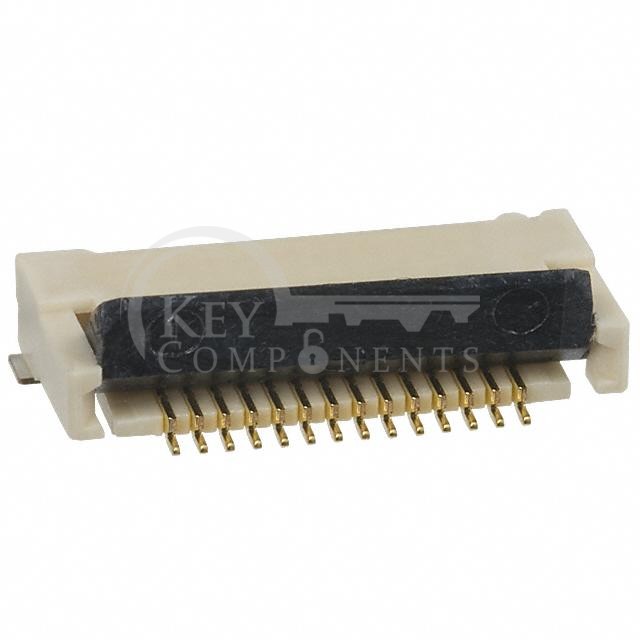

XF2M-3015-1A-R100
| Manufacturer Part | XF2M-3015-1A-R100 |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Description | CONN FPC 30POS 0.50MM R/A |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Flat Flex Type: | FPC |
| Mounting Type: | Surface Mount, Right Angle |
| Connector/Contact Type: | Contacts, Top and Bottom |
| Number of Positions: | 30 |
| Pitch: | 0.020" (0.50mm) |
| Termination: | Solder |
| FFC, FCB Thickness: | 0.30mm |
| Height Above Board: | 0.083" (2.10mm) |
| Locking Feature: | Rotary Lock, Backlock |
| Cable End Type: | Tapered |
| Contact Material: | Copper Alloy |
| Contact Finish: | Gold |
| Housing Material: | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material: | Liquid Crystal Polymer (LCP), Halogen Free |
| Features: | - |
| Voltage Rating: | 50V |
| Operating Temperature: | -30°C ~ 85°C |
| Material Flammability Rating: | UL94 V-0 |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
