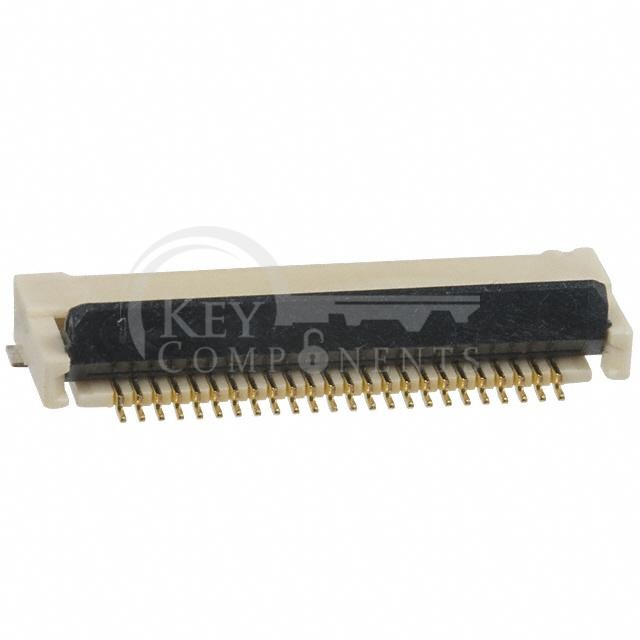

XF2M-2415-1A
| Manufacturer Part | XF2M-2415-1A |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Description | CONN FPC 24POS 0.50MM R/A |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Flat Flex Type: | FPC |
| Mounting Type: | Surface Mount, Right Angle |
| Connector/Contact Type: | Contacts, Top and Bottom |
| Number of Positions: | 24 |
| Pitch: | 0.020" (0.50mm) |
| Termination: | Solder |
| FFC, FCB Thickness: | 0.30mm |
| Height Above Board: | 0.083" (2.10mm) |
| Locking Feature: | Rotary Lock, Backlock |
| Cable End Type: | Tapered |
| Contact Material: | Copper Alloy |
| Contact Finish: | Gold |
| Housing Material: | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material: | Liquid Crystal Polymer (LCP), Halogen Free |
| Features: | - |
| Voltage Rating: | 50V |
| Operating Temperature: | -30°C ~ 85°C |
| Material Flammability Rating: | UL94 V-0 |
