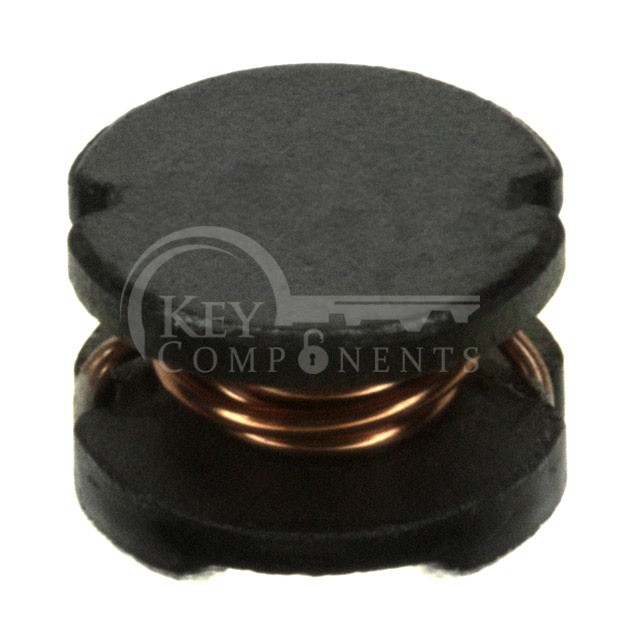

784775247
| Manufacturer Part | 784775247 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 470UH 360MA 1.96OHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 470 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 360 mA |
| Current - Saturation (Isat): | 380mA |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 1.96Ohm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 3MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 10 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | 7850 |
| Size / Dimension: | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Height - Seated (Max): | 0.217" (5.50mm) |
