744776282

744776282

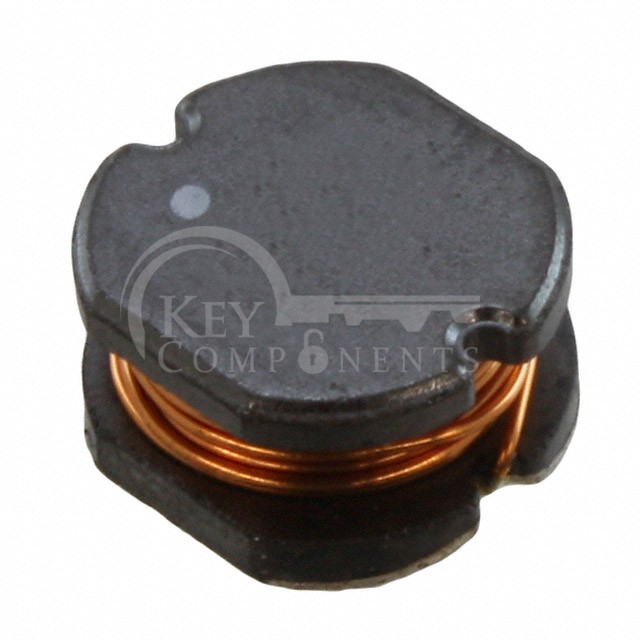

Manufacturer Part 744776282
Manufacturer Würth Elektronik
Description FIXED IND 820UH 320MA 2.55OHM SM
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:820 µH
Tolerance:±10%
Current Rating (Amps):320 mA
Current - Saturation (Isat):410mA
Shielding:Unshielded
DC Resistance (DCR):2.55Ohm Max
Q @ Freq:-
Frequency - Self Resonant:2.5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:10 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max):0.232" (5.90mm)
