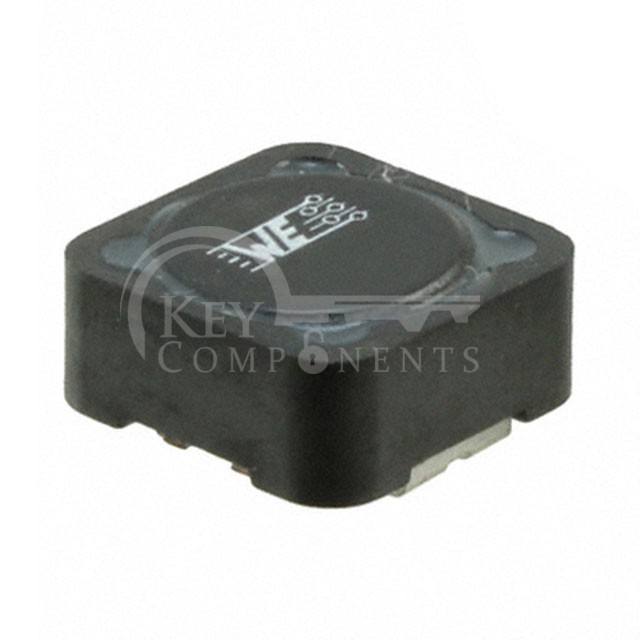

744771122
| Manufacturer Part | 744771122 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 22UH 3.37A 36 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 22 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 3.37 A |
| Current - Saturation (Isat): | 3.77A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 36mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 13.5MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 1 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max): | 0.236" (6.00mm) |
