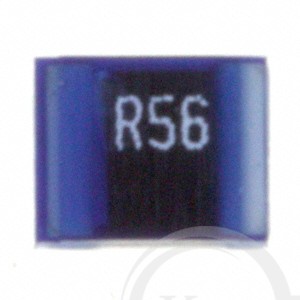

744762256A
| Manufacturer Part | 744762256A |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 560NH 310MA 1.5OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ceramic |
| Inductance: | 560 nH |
| Tolerance: | ±5% |
| Current Rating (Amps): | 310 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 1.5Ohm Max |
| Q @ Freq: | 45 @ 100MHz |
| Frequency - Self Resonant: | 430MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 25 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 1008 (2520 Metric) |
| Supplier Device Package: | 1008 (2520 Metric) |
| Size / Dimension: | 0.102" L x 0.083" W (2.60mm x 2.10mm) |
| Height - Seated (Max): | 0.075" (1.90mm) |
