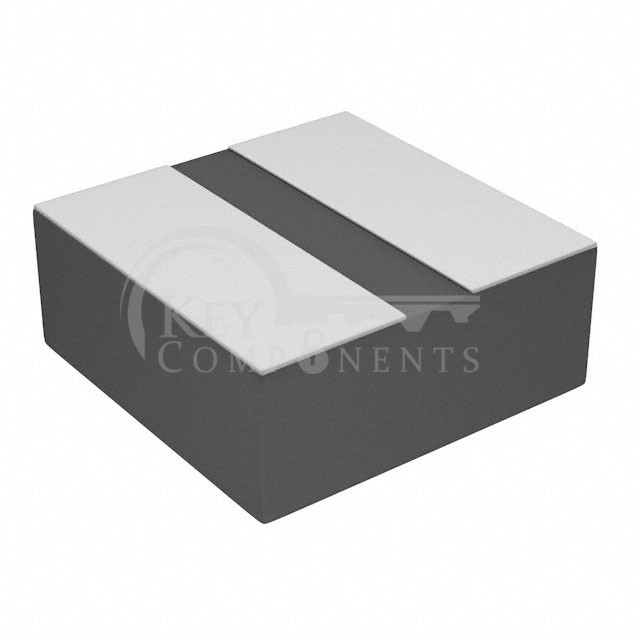

744383340068
| Manufacturer Part | 744383340068 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 680NH 3.5A 43.2MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Molded |
| Material - Core: | Metal Composite |
| Inductance: | 680 nH |
| Tolerance: | ±30% |
| Current Rating (Amps): | 3.5 A |
| Current - Saturation (Isat): | 7.7A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 43.2mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 100MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 1212 (3030 Metric) |
| Supplier Device Package: | 3012 |
| Size / Dimension: | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max): | 0.047" (1.20mm) |
