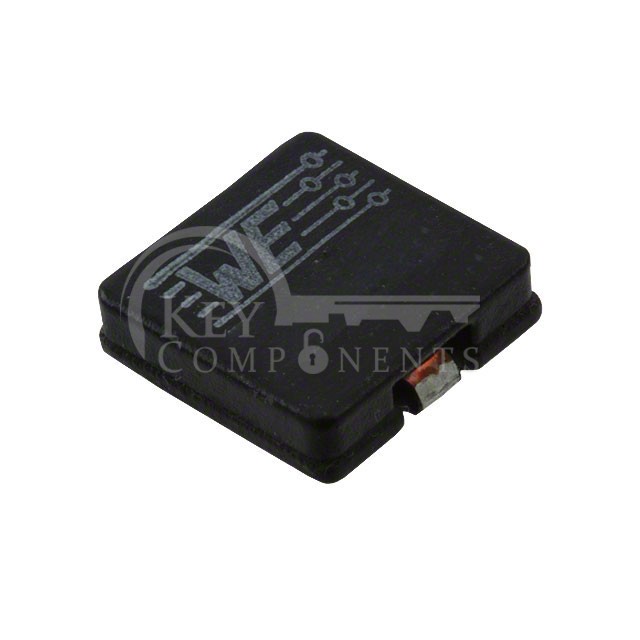

744323056
| Manufacturer Part | 744323056 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 560NH 18A 2.17MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Wirewound |
| Material - Core: | - |
| Inductance: | 560 nH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 18 A |
| Current - Saturation (Isat): | 33A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 2.17mOhm |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 106MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 150°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | 1030 |
| Size / Dimension: | 0.417" L x 0.417" W (10.60mm x 10.60mm) |
| Height - Seated (Max): | 0.122" (3.10mm) |
