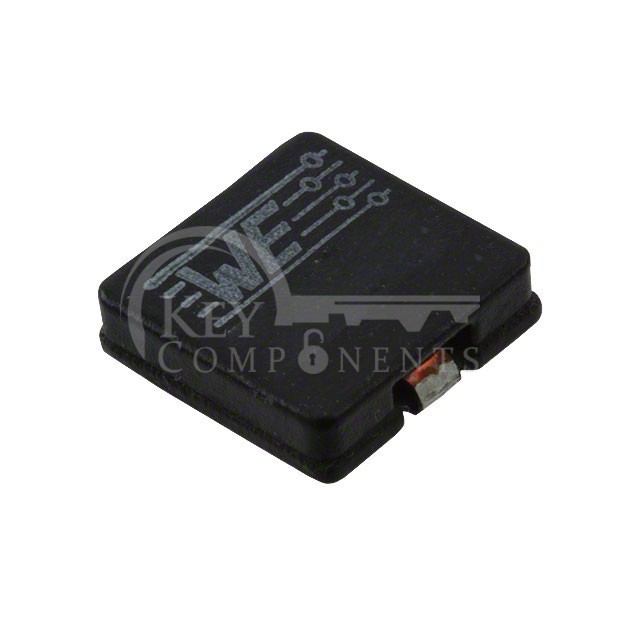

744323020
| Manufacturer Part | 744323020 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 200NH 22A 0.82MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Wirewound |
| Material - Core: | - |
| Inductance: | 200 nH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 22 A |
| Current - Saturation (Isat): | 50A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 0.82mOhm |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 216MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 150°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | 1030 |
| Size / Dimension: | 0.417" L x 0.417" W (10.60mm x 10.60mm) |
| Height - Seated (Max): | 0.122" (3.10mm) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
