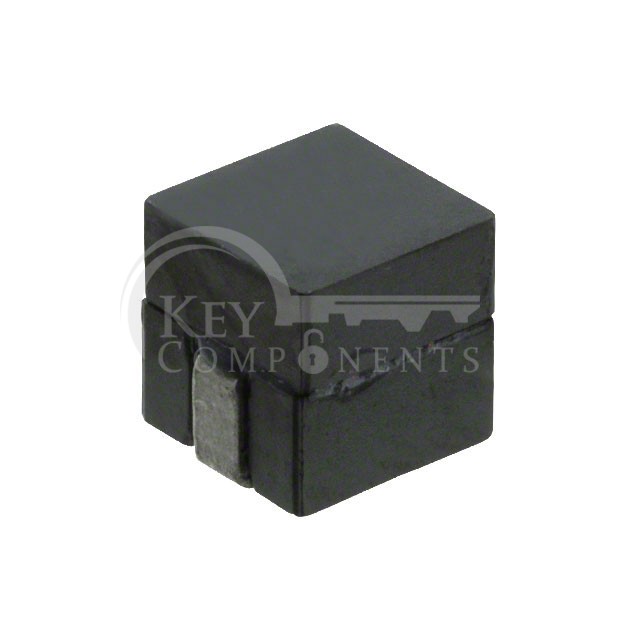

744307012
| Manufacturer Part | 744307012 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 120NH 26A 0.29MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Manganese Zinc Ferrite (MnZn) |
| Inductance: | 120 nH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 26 A |
| Current - Saturation (Isat): | 48A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 0.29mOhm |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 400MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.291" L x 0.283" W (7.40mm x 7.20mm) |
| Height - Seated (Max): | 0.283" (7.20mm) |
