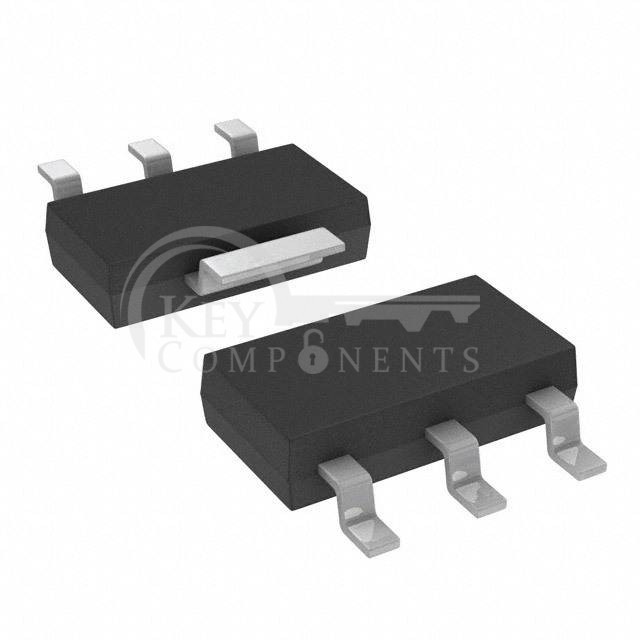

IRFL9014TRPBF-BE3

Manufacturer Part	IRFL9014TRPBF-BE3
Manufacturer	Vishay Siliconix
Description	MOSFET P-CH 60V 1.8A SOT223
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	1.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	500mOhm @ 1.1A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	270 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2W (Ta), 3.1W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-223
Package / Case:	TO-261-4, TO-261AA
