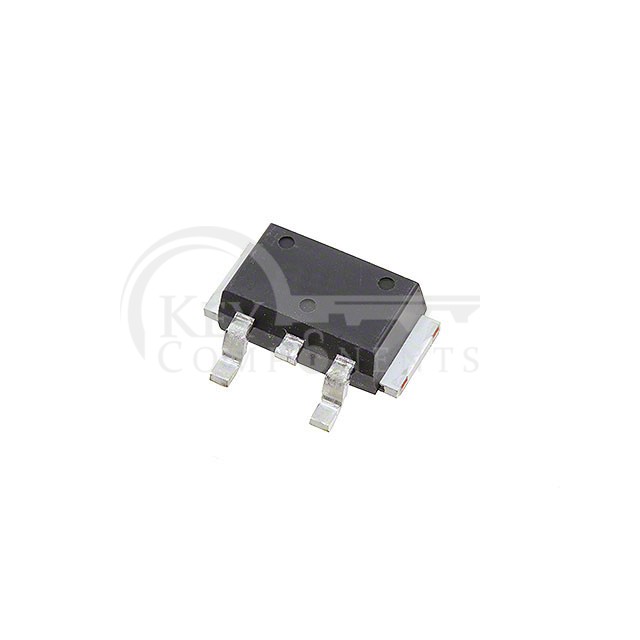

80CNQ045ASL

80CNQ045ASL

Manufacturer Part 80CNQ045ASL
Manufacturer Vishay General Semiconductor - Diodes Division
Description DIODE ARRAY SCHOTTKY 45V D618SL
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):45 V
Current - Average Rectified (Io) (per Diode):40A
Voltage - Forward (Vf) (Max) @ If:520 mV @ 40 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:5 mA @ 45 V
Operating Temperature - Junction:-55°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:D-61-8-SL
Supplier Device Package:D-61-8-SL
