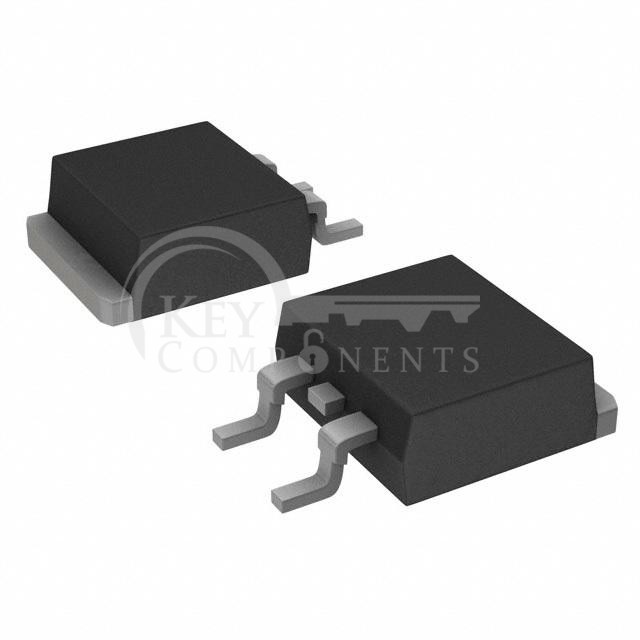

Manufacturer Part | 47CTQ020S |
---|---|
Manufacturer | Vishay General Semiconductor - Diodes Division |
Description | DIODE ARRAY SCHOTTKY 20V D2PAK |
Category | Discrete Semiconductor Products |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Obsolete |
Diode Configuration: | 1 Pair Common Cathode |
Diode Type: | Schottky |
Voltage - DC Reverse (Vr) (Max): | 20 V |
Current - Average Rectified (Io) (per Diode): | 20A |
Voltage - Forward (Vf) (Max) @ If: | 450 mV @ 20 A |
Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
Reverse Recovery Time (trr): | - |
Current - Reverse Leakage @ Vr: | 3 mA @ 20 V |
Operating Temperature - Junction: | -55°C ~ 150°C |
Mounting Type: | Surface Mount |
Package / Case: | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Supplier Device Package: | TO-263AB (D²PAK) |
