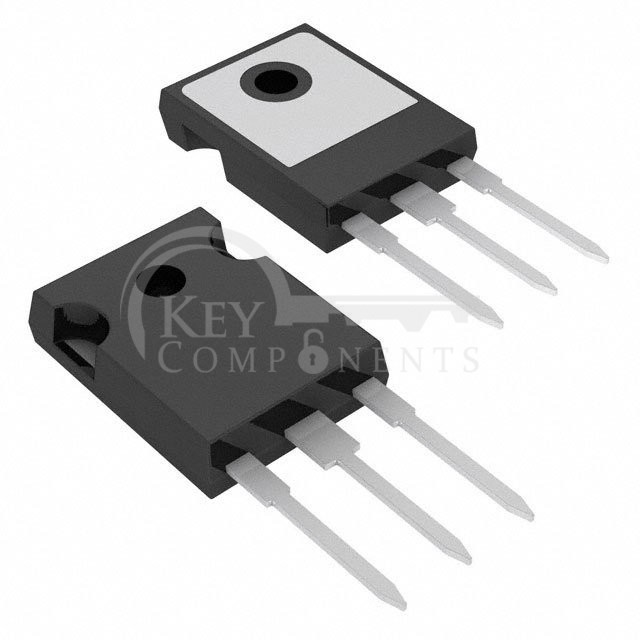

40TPS12
| Manufacturer Part | 40TPS12 |
|---|---|
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Description | SCR 1.2KV 55A TO247AC |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Voltage - Off State: | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max): | 2.5 V |
| Current - Gate Trigger (Igt) (Max): | 150 mA |
| Voltage - On State (Vtm) (Max): | 1.85 V |
| Current - On State (It (AV)) (Max): | 35 A |
| Current - On State (It (RMS)) (Max): | 55 A |
| Current - Hold (Ih) (Max): | 150 mA |
| Current - Off State (Max): | 500 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 600A @ 50Hz |
| SCR Type: | Standard Recovery |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Through Hole |
| Package / Case: | TO-247-3 |
| Supplier Device Package: | TO-247AC |
