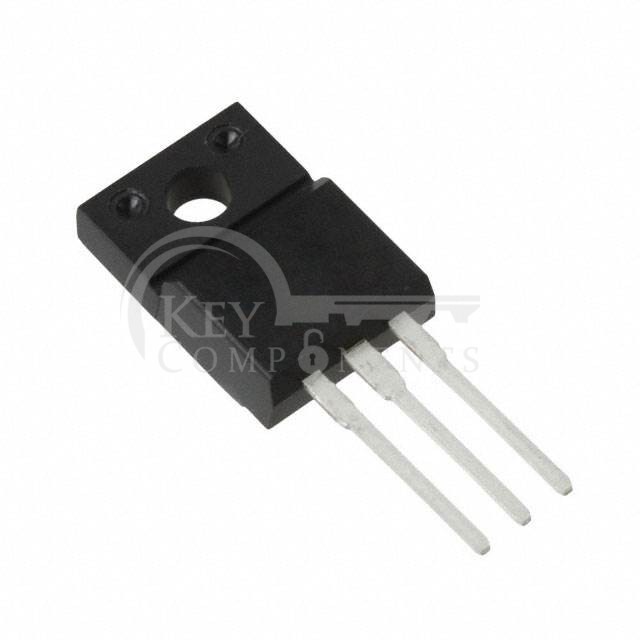

Manufacturer Part | 20CTH03FP |
---|---|
Manufacturer | Vishay General Semiconductor - Diodes Division |
Description | DIODE ARRAY GP 300V 10A TO220FP |
Category | Discrete Semiconductor Products |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Obsolete |
Diode Configuration: | 1 Pair Common Cathode |
Diode Type: | Standard |
Voltage - DC Reverse (Vr) (Max): | 300 V |
Current - Average Rectified (Io) (per Diode): | 10A |
Voltage - Forward (Vf) (Max) @ If: | 1.25 V @ 10 A |
Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
Reverse Recovery Time (trr): | 35 ns |
Current - Reverse Leakage @ Vr: | 20 µA @ 300 V |
Operating Temperature - Junction: | -65°C ~ 175°C |
Mounting Type: | Through Hole |
Package / Case: | TO-220-3 Full Pack |
Supplier Device Package: | TO-220 Full Pack |
