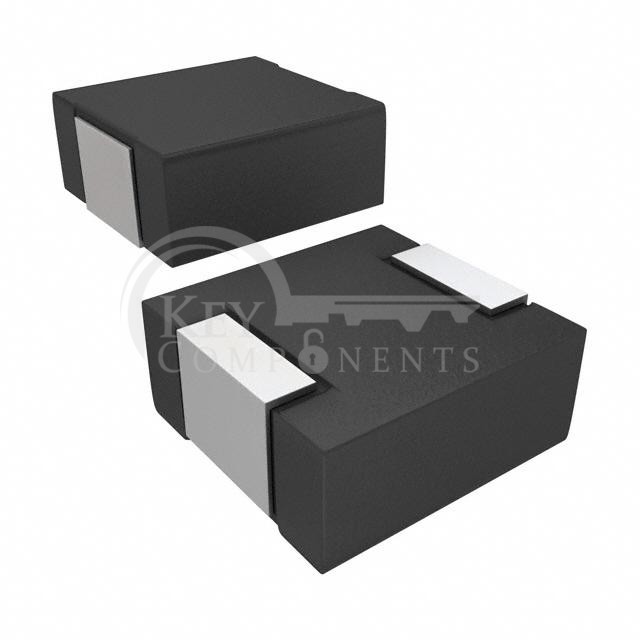

IHLP2525CZER100M5A
| Manufacturer Part | IHLP2525CZER100M5A |
|---|---|
| Manufacturer | Vishay Dale |
| Description | FIXED IND 10UH 4A 76.9 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Molded |
| Material - Core: | - |
| Inductance: | 10 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 4 A |
| Current - Saturation (Isat): | 2.9A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 76.9mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 14MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max): | 0.118" (3.00mm) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
Related parts
Parts Tags
IHLP2525CZER100M5A Price
IHLP2525CZER100M5A Distributor
IHLP2525CZER100M5A Manufacturer
IHLP2525CZER100M5A Technical Data
IHLP2525CZER100M5A PDF
IHLP2525CZER100M5A Datasheet
IHLP2525CZER100M5A Picture
IHLP2525CZER100M5A Image
IHLP2525CZER100M5A Part
IHLP2525CZER100M5A Stock
IHLP2525CZER100M5A Inventory
IHLP2525CZER100M5A Rfq
IHLP2525CZER100M5A Inquiry
IHLP2525CZER100M5A Online Order
Quote Request
- Min. :
- 1
- Availability :
- 3691 pieces
