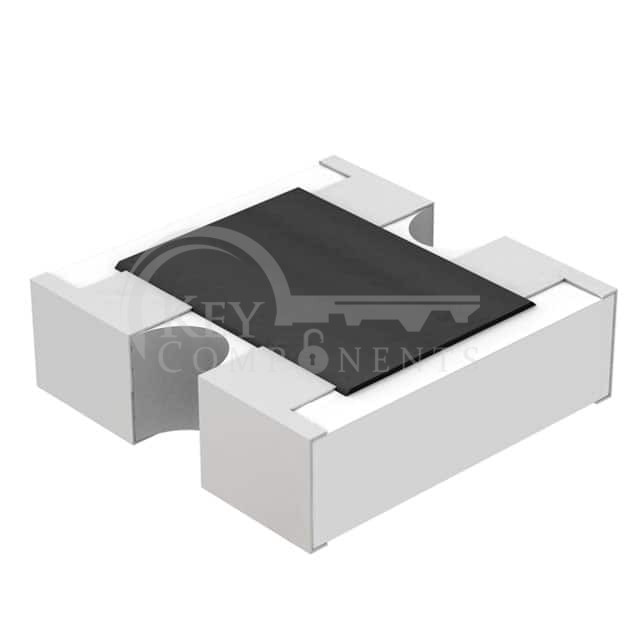

ACASN1002S1002P1AT
| Manufacturer Part | ACASN1002S1002P1AT |
|---|---|
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Description | RES ARRAY 2 RES 10K OHM 0606 |
| Category | Resistors |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Circuit Type: | Isolated |
| Resistance (Ohms): | 10k |
| Tolerance: | ±0.1% |
| Number of Resistors: | 2 |
| Resistor Matching Ratio: | ±0.05% |
| Resistor-Ratio-Drift: | ±15ppm/°C |
| Number of Pins: | 4 |
| Power Per Element: | 125mW |
| Temperature Coefficient: | ±25ppm/°C |
| Operating Temperature: | -55°C ~ 155°C |
| Applications: | Automotive AEC-Q200, Voltage Divider (TCR Matched) |
| Mounting Type: | Surface Mount |
| Package / Case: | 0606, Convex |
| Supplier Device Package: | 0606 |
| Size / Dimension: | 0.063" L x 0.059" W (1.60mm x 1.50mm) |
| Height - Seated (Max): | 0.022" (0.55mm) |
