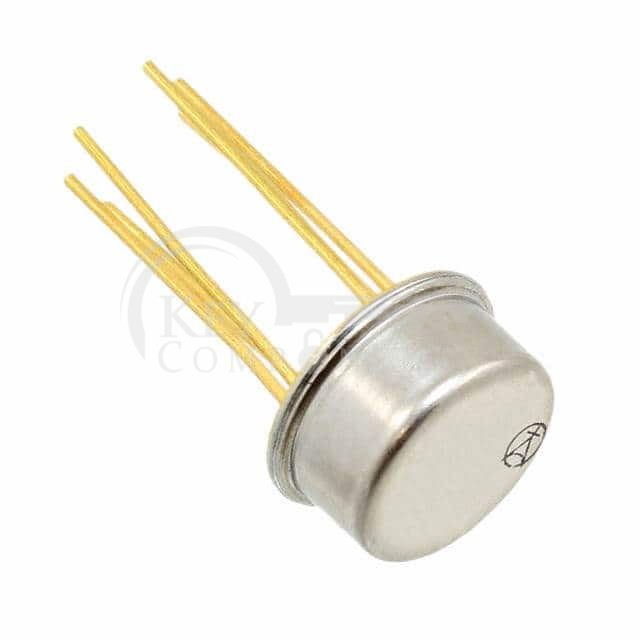

4N24
| Manufacturer Part | 4N24 |
|---|---|
| Manufacturer | TT Electronics/Optek Technology |
| Description | OPTOISO 1KV TRANS W/BASE TO78-6 |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 1 |
| Voltage - Isolation: | 1000VDC |
| Current Transfer Ratio (Min): | 100% @ 10mA |
| Current Transfer Ratio (Max): | - |
| Turn On / Turn Off Time (Typ): | - |
| Rise / Fall Time (Typ): | 20µs, 20µs |
| Input Type: | DC |
| Output Type: | Transistor with Base |
| Voltage - Output (Max): | 35V |
| Current - Output / Channel: | 50mA |
| Voltage - Forward (Vf) (Typ): | 1.3V (Max) |
| Current - DC Forward (If) (Max): | 40 mA |
| Vce Saturation (Max): | 300mV |
| Operating Temperature: | -65°C ~ 125°C |
| Mounting Type: | Through Hole |
| Package / Case: | TO-78-6 Metal Can |
| Supplier Device Package: | TO-78-6 |
