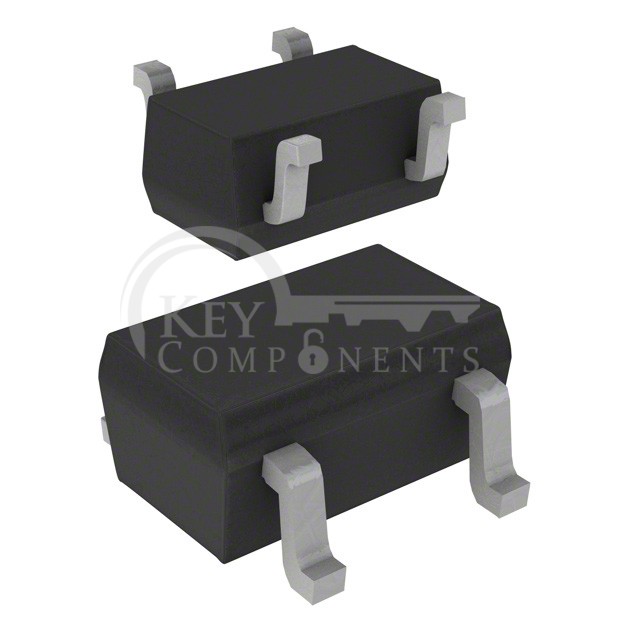

1SS402TE85LF

1SS402TE85LF

Manufacturer Part 1SS402TE85LF
Manufacturer Toshiba Semiconductor and Storage
Description DIODE ARRAY SCHOTTKY 20V USQ
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Diode Configuration:2 Independent
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io) (per Diode):50mA
Voltage - Forward (Vf) (Max) @ If:550 mV @ 50 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:500 nA @ 20 V
Operating Temperature - Junction:125°C (Max)
Mounting Type:Surface Mount
Package / Case:SC-82
Supplier Device Package:USQ
