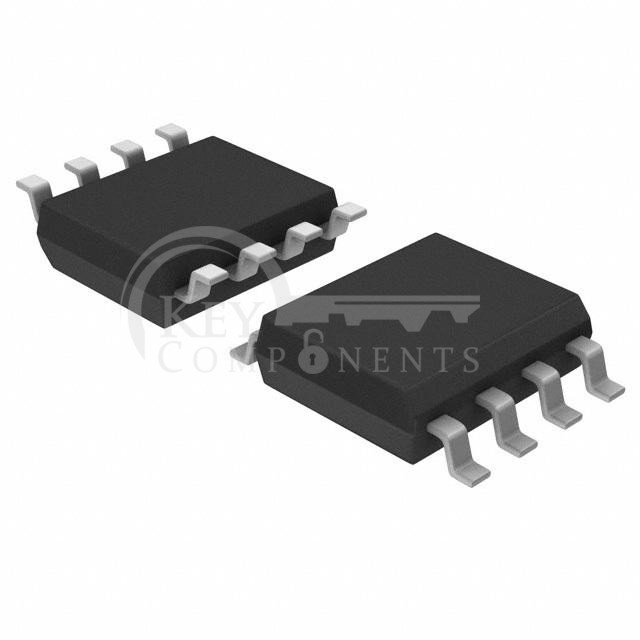

UCC384DPTR-ADJ

UCC384DPTR-ADJ

Manufacturer Part UCC384DPTR-ADJ
Manufacturer Texas Instruments
Description IC REG LIN NEG ADJ 500MA 8SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Configuration:Negative
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):-15V
Voltage - Output (Min/Fixed):-1.25V
Voltage - Output (Max):-15V
Voltage Dropout (Max):0.5V @ 500mA
Current - Output:500mA
Current - Quiescent (Iq):350 µA
Current - Supply (Max):-
PSRR:-
Control Features:-
Protection Features:Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature:0°C ~ 70°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
