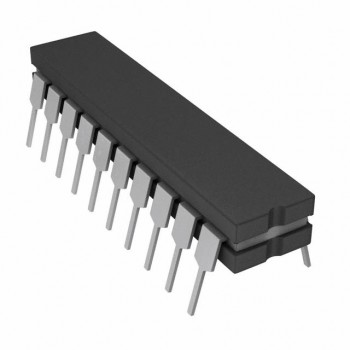

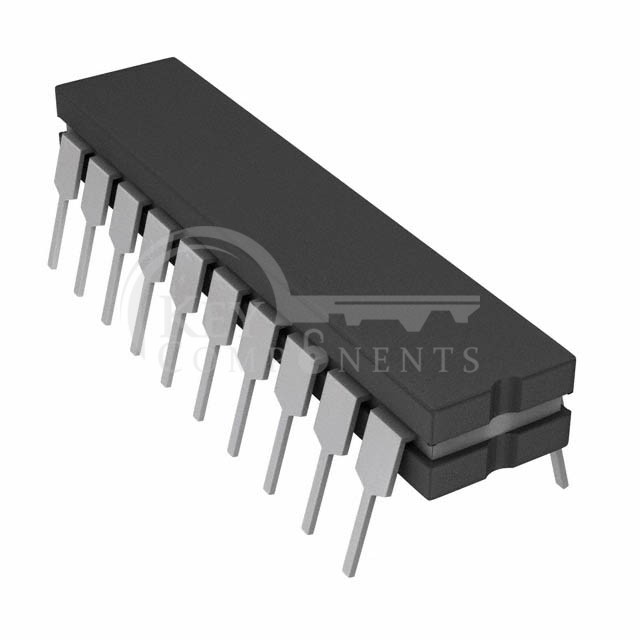

3656AG
| Manufacturer Part | 3656AG |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC OPAMP ISOLATION 1 CIRC 20CDIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Amplifier Type: | Isolation |
| Number of Circuits: | 1 |
| Output Type: | - |
| Slew Rate: | 0.1V/µs |
| Gain Bandwidth Product: | - |
| -3db Bandwidth: | 30 kHz |
| Current - Input Bias: | 100 nA |
| Voltage - Input Offset: | 2 mV |
| Current - Supply: | 14mA |
| Current - Output / Channel: | 5 mA |
| Voltage - Supply Span (Min): | 17 V |
| Voltage - Supply Span (Max): | 32 V |
| Operating Temperature: | -25°C ~ 85°C |
| Mounting Type: | Through Hole |
| Package / Case: | 20-CDIP (0.900", 22.86mm) |
| Supplier Device Package: | 20-CDIP |
