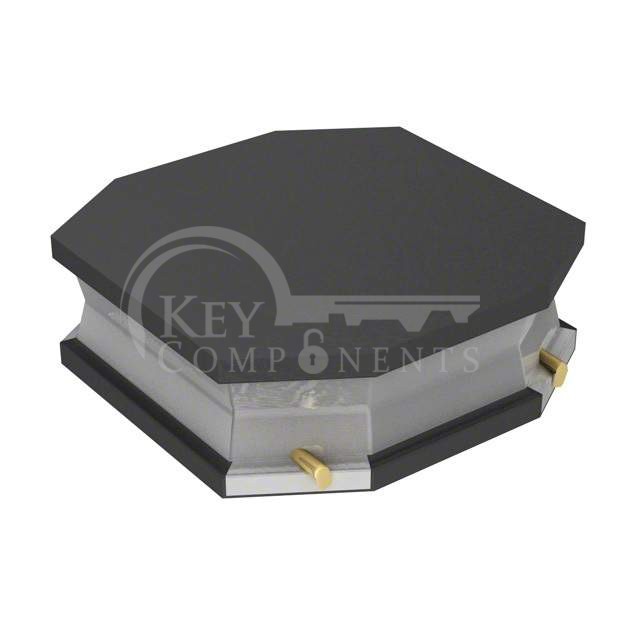

VLS3010ET-2R2M
| Manufacturer Part | VLS3010ET-2R2M |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 2.2UH 1.2A 116MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Type: | Wirewound |
| Material - Core: | - |
| Inductance: | 2.2 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 1.2 A |
| Current - Saturation (Isat): | 1.2A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 116mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 1 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max): | 0.039" (1.00mm) |
