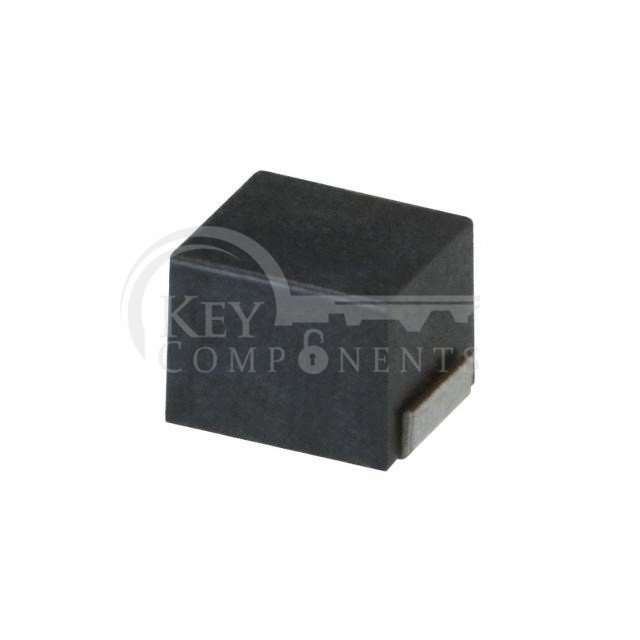

NLV25T-101J-PF
| Manufacturer Part | NLV25T-101J-PF |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 100UH 60MA 21 OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 100 µH |
| Tolerance: | ±5% |
| Current Rating (Amps): | 60 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 21Ohm Max |
| Q @ Freq: | 15 @ 796kHz |
| Frequency - Self Resonant: | 12MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 796 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 1008 (2520 Metric) |
| Supplier Device Package: | 1008 (2520 Metric) |
| Size / Dimension: | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max): | 0.075" (1.90mm) |
