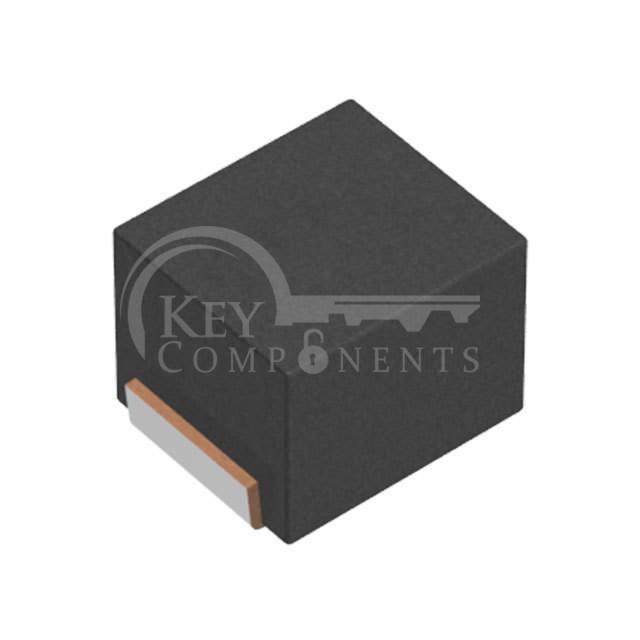

NLCV25T-1R5M-EF
| Manufacturer Part | NLCV25T-1R5M-EF |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 1.5UH 435MA 546MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 1.5 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 435 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 546mOhm Max |
| Q @ Freq: | 20 @ 7.96MHz |
| Frequency - Self Resonant: | 165MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 7.96 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 1008 (2520 Metric) |
| Supplier Device Package: | 1008 (2520 Metric) |
| Size / Dimension: | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max): | 0.075" (1.90mm) |
