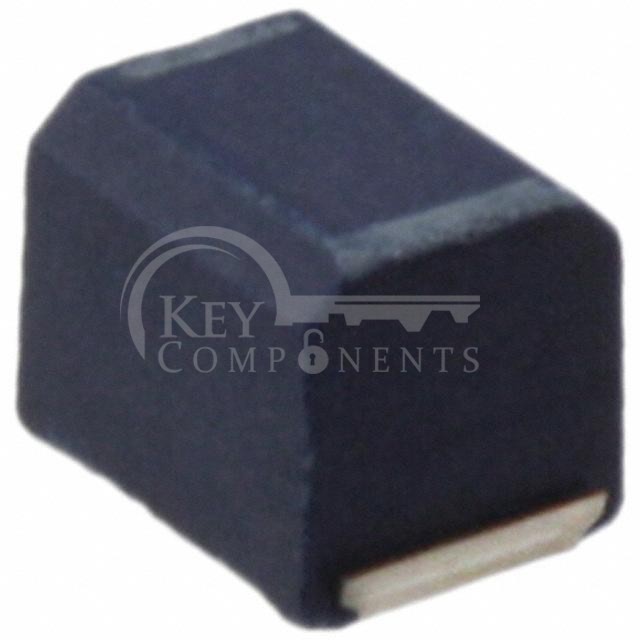

NL453232T-821J-PF
| Manufacturer Part | NL453232T-821J-PF |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 820UH 30MA 35 OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Wirewound |
| Material - Core: | - |
| Inductance: | 820 µH |
| Tolerance: | ±5% |
| Current Rating (Amps): | 30 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 35Ohm Max |
| Q @ Freq: | 30 @ 796kHz |
| Frequency - Self Resonant: | 2.5MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 796 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 1812 (4532 Metric) |
| Supplier Device Package: | 1812 |
| Size / Dimension: | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max): | 0.134" (3.40mm) |
