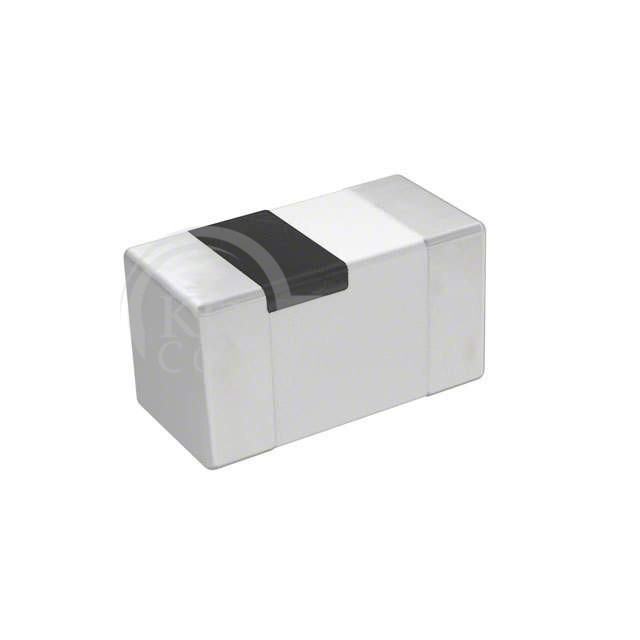

MLG1005S0N8BT000

MLG1005S0N8BT000

Manufacturer Part MLG1005S0N8BT000
Manufacturer TDK Corporation
Description FIXED IND 0.8NH 1A 100 MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Multilayer
Material - Core:Ceramic, Non-Magnetic
Inductance:0.8 nH
Tolerance:±0.1nH
Current Rating (Amps):1 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):100mOhm Max
Q @ Freq:-
Frequency - Self Resonant:10GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):0.022" (0.55mm)
