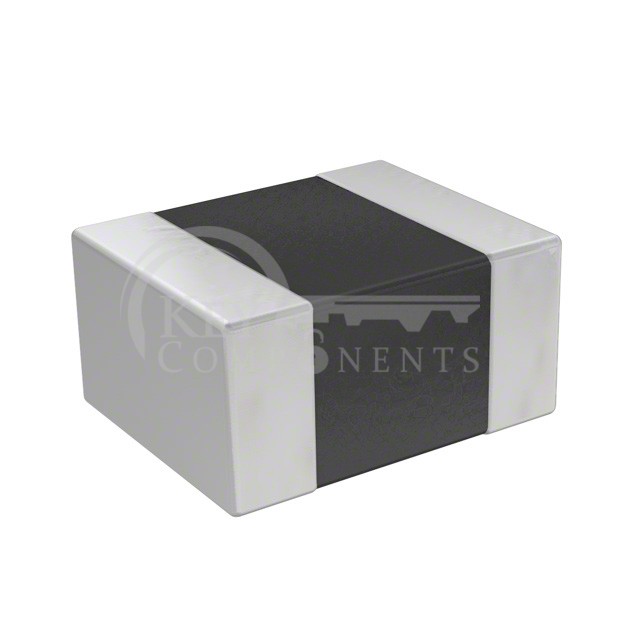

MLD2016S1R0MTD25
| Manufacturer Part | MLD2016S1R0MTD25 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 1UH 1.1A 156 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Multilayer |
| Material - Core: | Ferrite |
| Inductance: | 1 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 1.1 A |
| Current - Saturation (Isat): | - |
| Shielding: | Shielded |
| DC Resistance (DCR): | 156mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 2 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0806 (2016 Metric) |
| Supplier Device Package: | 0806 (2016 Metric) |
| Size / Dimension: | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max): | 0.039" (1.00mm) |
