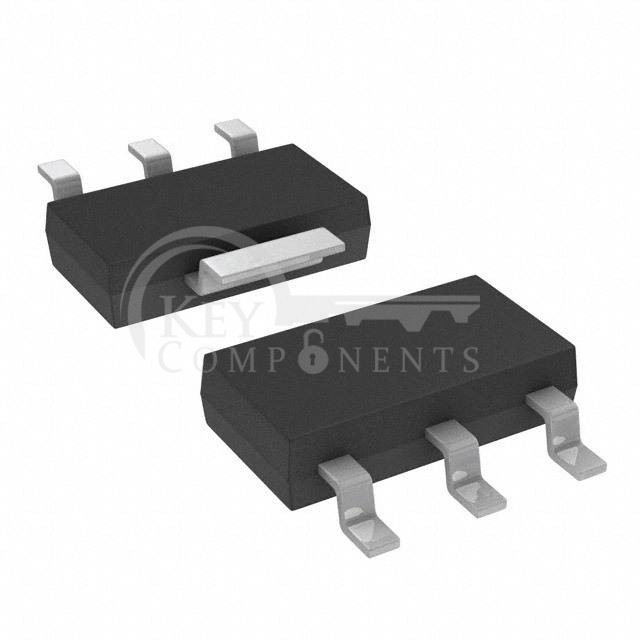

Z0109NN 5AA4

Z0109NN 5AA4

Manufacturer Part Z0109NN 5AA4
Manufacturer STMicroelectronics
Description TRIAC SENS GATE 800V 1A SOT223
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Triac Type:Logic - Sensitive Gate
Voltage - Off State:800 V
Current - On State (It (RMS)) (Max):1 A
Voltage - Gate Trigger (Vgt) (Max):1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm):8A, 8.5A
Current - Gate Trigger (Igt) (Max):10 mA
Current - Hold (Ih) (Max):10 mA
Configuration:Single
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223
