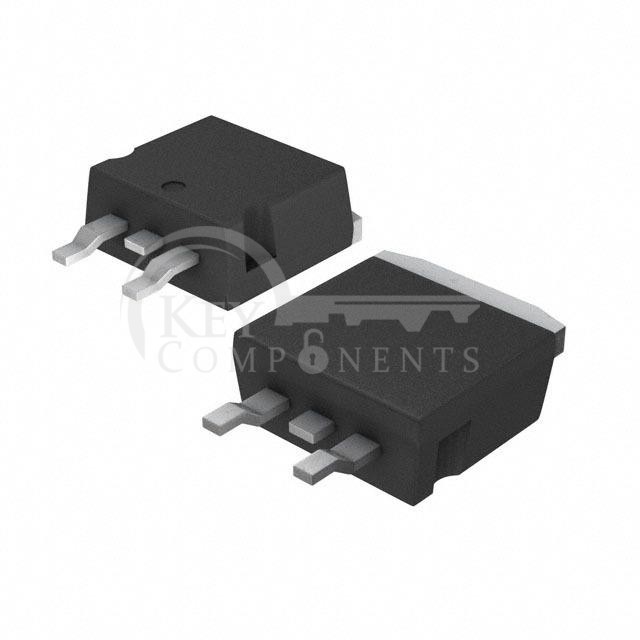

VNB10N07TR-E
| Manufacturer Part | VNB10N07TR-E |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC PWR DRIVER N-CHAN 1:1 D2PAK |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Switch Type: | General Purpose |
| Number of Outputs: | 1 |
| Ratio - Input:Output: | 1:1 |
| Output Configuration: | Low Side |
| Output Type: | N-Channel |
| Interface: | On/Off |
| Voltage - Load: | 55V (Max) |
| Voltage - Supply (Vcc/Vdd): | Not Required |
| Current - Output (Max): | 14A |
| Rds On (Typ): | 100mOhm (Max) |
| Input Type: | Non-Inverting |
| Features: | - |
| Fault Protection: | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature: | - |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | D2PAK |
| Package / Case: | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
