ESDA6V1LY
| Manufacturer Part | ESDA6V1LY |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | TVS DIODE 5.2VWM 16VC SOT23-3 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 2 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 5.2V |
| Voltage - Breakdown (Min): | 6.1V |
| Voltage - Clamping (Max) @ Ipp: | 16V |
| Current - Peak Pulse (10/1000µs): | 18A (8/20µs) |
| Power - Peak Pulse: | 300W |
| Power Line Protection: | No |
| Applications: | Automotive |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |

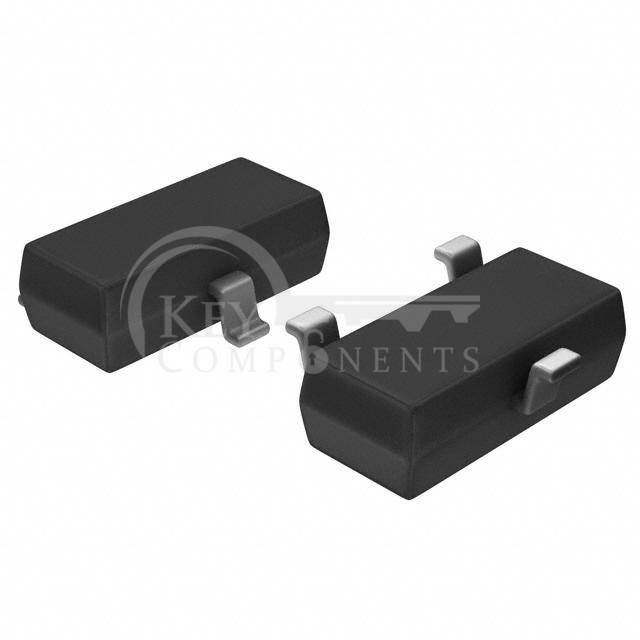

| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 |
