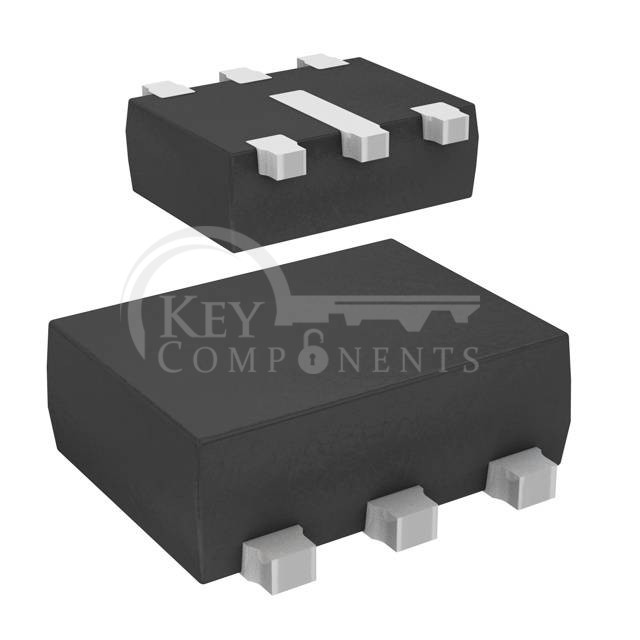

ESDA14V2BP6
| Manufacturer Part | ESDA14V2BP6 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | TVS DIODE 12VWM SOT666 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 4 |
| Voltage - Reverse Standoff (Typ): | 12V |
| Voltage - Breakdown (Min): | 14.2V |
| Voltage - Clamping (Max) @ Ipp: | - |
| Current - Peak Pulse (10/1000µs): | - |
| Power - Peak Pulse: | 50W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-563, SOT-666 |
| Supplier Device Package: | SOT-666 |
