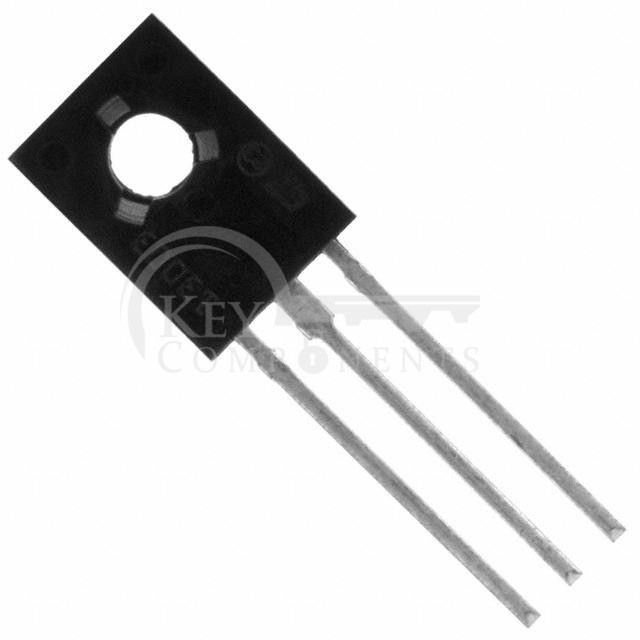

BD680

Manufacturer Part	BD680
Manufacturer	STMicroelectronics
Description	TRANS PNP DARL 80V 4A SOT32-3
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Transistor Type:	PNP - Darlington
Current - Collector (Ic) (Max):	4 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	2.5V @ 30mA, 1.5A
Current - Collector Cutoff (Max):	500µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	750 @ 1.5A, 3V
Power - Max:	40 W
Frequency - Transition:	-
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	SOT-32-3
